Nuxeo Add-Ons

Digital Asset Management (DAM)

The Digital Asset Management addon of the Nuxeo Platform provides multimedia files management (pictures, audio and video).

Installation

This add-on requires no specific installation steps. It can be installed like any other package from the Marketplace or from the Admin tab.

It is also possible to install it from the Startup wizard.

However some features depend on external software for conversion and transcoding. See the page Installing and Setting Up Related Software.

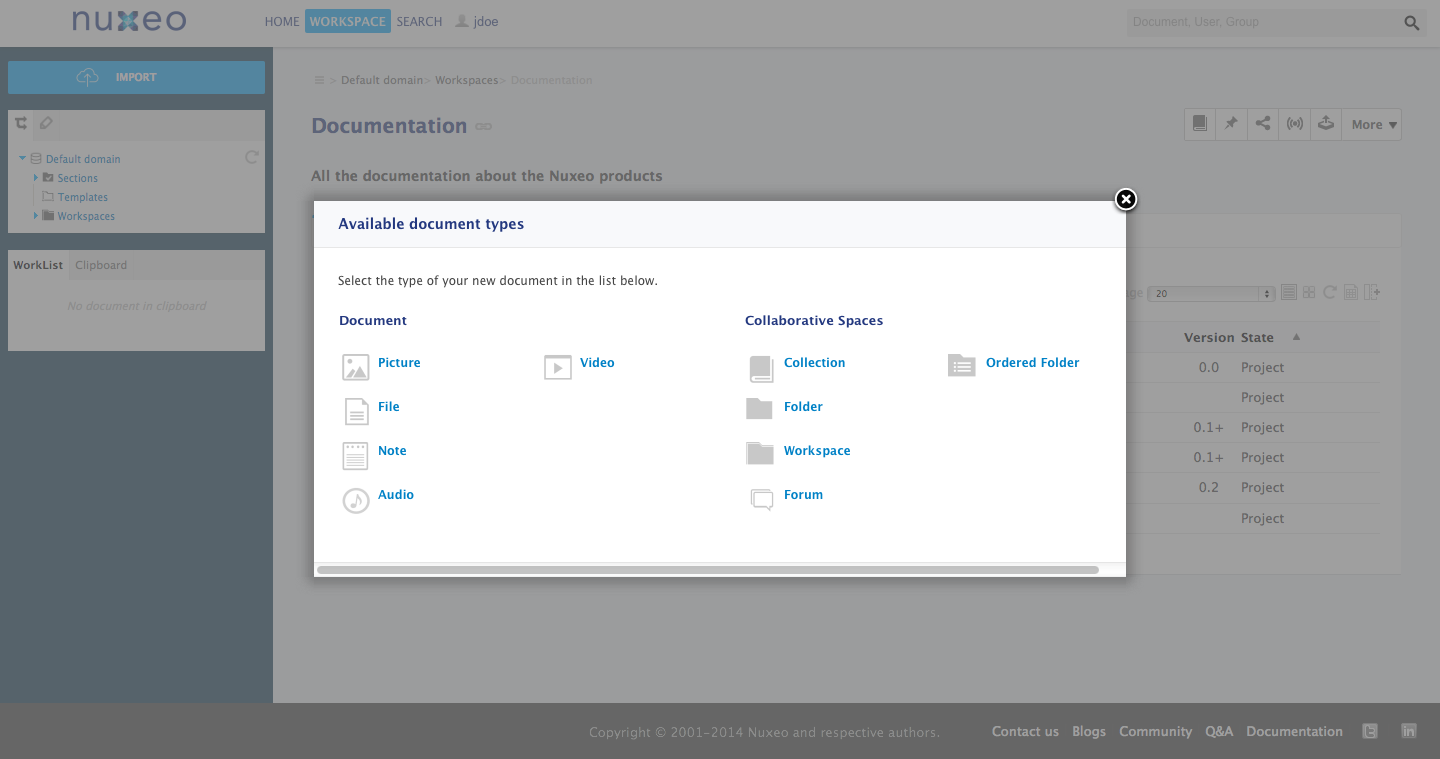

After you installed Nuxeo DAM, you have three new document types available.

Functional Overview

The Nuxeo DAM document types are fully integrated in the Nuxeo Platform and are available alongside the other document types. They can be created the same ways as the platform default document types, they get the same metadata, the same workflows, etc.

JSF UI

Pictures

Pictures are specific files. To take into account the specificities of pictures, their Summary tab shows additional pieces of information, such as:

  • Rotate actions
  • The picture's EXIF metadata
  • Additional picture views

Pictures can be created and edited in workspaces and folders like any other document type. You can also classify and organize them in collections.

When pictures are created, the EXIF metadata of the pictures are automatically extracted and displayed on the Summary tab. They cannot be modified. The IPTC legend, copyright and source are used to automatically fill in the description, rights and source metadata. See the page Binary Metadata for more information.

You can report to the page Supported File Formats to see which file formats are supported as pictures.

Browsing Pictures

Nuxeo DAM add the possibility to view pictures in a slideshow mode from the thumbnail mode of a workspace or search results. To view the pictures in a slideshow mode, click on the icon from the thumbnail mode. You can then switch from one picture to the next or the previous using the right and left keys of you keyboard. You automatically go the next page picture when you're at the last picture of the current page.

If no picture is available on the current page, it shows the icon .

Picture Views

When you import a document having the Picture facet on your platform, additional formats are available on it. The default ones are:

  • Thumbnail: the picture is converted to JPG and resized to 100 px height or width.
  • Small: the picture is converted to JPG and resized to 280 px height or width.
  • Medium: the picture is converted to JPG and resized to 550 px height or width.
  • FullHD: the picture is converted to JPG and resized to 1,920 px height or width.
  • OriginalJpeg: the picture is converted to JPG but the original size is kept. This export is done even if the original picture was a JPG file.
    The original and medium pictures can be the same size when you download them if the original is smaller or equal to medium size.

To download the picture view that you want, click on  in front of it.

To contribute new picture views, follow How to Contribute Picture Conversions.

A user interface is added in the Admin tab so that it is possible to re-compute picture conversions (Picture views). This is particularly useful when you add new conversions and want to compute them over existing images, or if you change the definition of some of the existing conversions.

Video

Video is a document type dedicated to the management of videos files. It provides the following specific features: A player to view the video from the application, a storyboard to navigate in the video and alternative video formats.

Video documents can be created and edited like any other document type. See the page Supported File Formats for supported video files.

Viewing Videos

Video documents can be viewed from their Summary tab where a video player is available. You can also navigate in the video using the Storyboard that is generated at import time.

Converting Videos

It is possible to convert the video to various formats from the user interface:

  • Ogg
  • WebM
  • MP4

To convert the video, from the Summary tab click on the Convert button corresponding to the format you want.

Exporting Videos

When your export a video asset, you get a folder with several files available:

  • The original video file
  • One WEBM conversion
  • One MP4 conversion
  • One JPEG picture by storyboard chapter
  • One JPG picture prefixed with "StaticPlayerView_video-screenshot-", which is the picture extracted from the video that is used for the player picture
  • One JPG picture prefixed with "Thumbnail_video-screenshot-", which is the thumbnail used in folders proposing a thumbnail view (typically in the DAM view)

A video is exported like any other document. See the page Exporting Documents.

Audio

Audio is a document types dedicated to audio files management. It provides a player from the document Summary tab to listen to it from the application.

Audio documents can be created and edited like any other document type. They don't have any specific tab or action available.

See the page Supported File Formats for supported audio files.

Web UI

Pictures

Pictures are specific files. To take into account the specificities of pictures, additional information are available such as:

  • Rotate actions
  • Dimensions
  • Format
  • ...

Pictures can be created and edited in workspaces and folders like any other document type. You can also classify and organize them in collections.

When you import a document having the Picture facet on your platform, additional formats are available on it. The default ones are:

  • Thumbnail: the picture is converted to JPG and resized to 100 px height or width.
  • Small: the picture is converted to JPG and resized to 280 px height or width.
  • Medium: the picture is converted to JPG and resized to 550 px height or width.
  • FullHD: the picture is converted to JPG and resized to 1,920 px height or width.
  • OriginalJpeg: the picture is converted to JPG but the original size is kept. This export is done even if the original picture was a JPG file.
    The original and medium pictures can be the same size when you download them if the original is smaller or equal to medium size.

To download the format that you want, click on  in front of it.

Videos

Video is a document types dedicated to the management of videos files and can be created or edited like any other files.

Viewing Videos

Video documents can be viewed from their View tab where a video player is available.

Converting Videos

It is possible to convert the video to various formats from the Web UI user interface:

  • WebM
  • MP4

To convert the video, click on  corresponding to the format you want.

Browsing Assets

Once DAM installed and assets documents created, a new search type is displayed in the left menu, the Assets search. This search will let you search by assets metadata, such as:

  • Type
  • Format
  • Width
  • Height
  • Etc.

The Assets search leverages Elasticsearch to provide a quicker and more efficient search. The search form uses Elasticsearch aggregates for most fields: aggregate fields values are filtered so as to display only relevant values and show the count of matching documents for each value.

The Assets search form offers several search criteria, that you can associate to define your search and find documents. Search results use the thumbnail view by default. Clicking on a document thumbnail will lead you directly to the document.

To search documents using detailed criteria:

  1. Click on the Assets tab.
  2. Fill in the form with your criteria and/or select the search criteria corresponding to your needs.
    The search results will be automatically updated according to the criteria selected.

Technical Overview


Schema

  • picture: Used to store picture views.
  • image_metadata: Used to store EXIF metadata.

Some IPTC metadata are stored within dublincore. More information Binary Metadata

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.ecm.platform.picture.coreTypes--schema.

Facets

  • Picture: The facet to put on Document Types that should be considered as Picture . This facet comes with the following schemas: file (to store the picture file), picture, image_metadata and iptc.
  • MultiviewPicture: The marker facet to be put on document types already having Picture facet to instantiate MultiviewPictureAdapter.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.ecm.platform.picture.coreTypes--doctype.

Document Type

  • Picture: This is the default type in Nuxeo that handles picture files. It comes with the Picture and MultiviewPicture facets.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.ecm.platform.picture.coreTypes--doctype .

Listeners

  • pictureChangedListener: Synchronous listener checking if the main Picture file has changed. If so, pre-fills all the picture views with a placeholder and trigger an event updatePictureview to notify asynchronous listeners.
  • pictureViewListener: Asynchronous listener computing the picture views.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.ecm.platform.picture.listeners--listener.

File Manager Plug-in

The plug-in Imageplugin is contributed to the File Manager to create Picture documents when the imported file mime type matches one of the contributed image/* mime types.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.ecm.platform.picture.filemanager.contrib--plugins.

Picture conversions

Picture conversions are used to generate the picture views of document having the Picture facet. Default picture conversions (Thumbnail, Small, Medium and OriginalJpeg) are contributed to the pictureConversions extension point. They are marked as default and so are always generated, their associated filters are not evaluated. If the default conversions are not necessary, they can be disabled using Nuxeo Studio.

Video

The Nuxeo Platform provides an add-on with the following video features:

  • Extract video information
  • In-browser HTML5 video player (fallback on Flash player if needed)
  • Storyboard extraction and time based navigation

Schema

  • video: Used to store the video info, the transcoded videos and the storyboard.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.nuxeo.ecm.platform.video.doctype--schema.

Facets

  • Video: Facet to put on Document Types that should be considered as Video. This facet comes with the following schemas: file (to store the video file), video and picture (to store the preview screenshot).
  • HasStoryboard: Marker facet to be set on types for which you want to generate Storyboard, types on which you already added the Video facet.
  • HasVideoPreview: Marker facet to be set on types for which you want to generate a video preview (screenshot), and on which you already added the Video facet.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.nuxeo.ecm.platform.video.doctype--doctype.

Document Type

  • Video: This is the default type in the Nuxeo Platform that handles video files. It comes with the VideoHasStoryboard and HasVideoPreview facets.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.nuxeo.ecm.platform.video.doctype--doctype.

Listeners

  • videoChangedListener: Synchronous listener checking if the main Video file has changed, if so extract the video information (stored in vid:info) and trigger and event videoChanged to notify asynchronous listeners.
  • videoStoryboardListener: Asynchronous listener generating the preview screenshots (stored as picture views in the picture schema) and the storyboard of the video (stored in vid:storyboard).
  • videoAutomaticConversions: Asynchronous listener computing the transcoded videos from the video conversions marked as automatic. Transcoded videos are stored in vid:transcodedVideos.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.platform.video.core.listeners--listener.

File Manager Plug-in

The plug-in VideoImporter is contributed to the File Manager to create Video documents when the imported file mime type matches video/*.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.ecm.platform.video.filemanager.contrib--plugins.

Conversion Operations

More complex conversions can be performed using the video conversion operations:

  • Add Watermark to Video
  • Concatenate Video
  • Slice Video
  • Extract Video Closed Captions

Be sure you have both ffmpeg and ccextractor installed, both of which are required by certain operations.

Locate the operation you wish to use on the Automation Documentation page and copy its JSON definition to the Automation Operations Registry in Nuxeo Studio  (Settings > Registries > Automation Operations) . The operation will then be exposed in Studio and can be implemented in an Automation Chain.

Add a Photo Watermark to a Video

To add a company logo to your videos, create a simple Automation Chain in Nuxeo Studio.

  1. From the Automation menu, select User Actions and create a new User Action.
  2. Add a button in the Contextual Tools category to trigger the Automation Chain.
  3. Under the Action Activation menu, select the permissions required to activate the User Action and add the Video document type to the activation conditions.
  4. Enter the name of your Automation Chain, and click Create.

Then create your Automation Chain as follows:

- Context.FetchDocument
- Context.SetInputAsVar:
    name: theVideoToConvert
- Repository.GetDocument:
    value: /default-domain/workspaces/watermarks/NuxeoLogo
- Context.SetInputAsVar:
    name: watermark
- Context.RestoreDocumentInput:
    name: theVideoToConvert
- Video.AddWatermark:
    watermark: Context["watermark"]
    x: '0'
    y: '0'
- WebUI.DownloadFile

When navigating on an existing Video document in Nuxeo, clicking the User Action button you created triggers the operation, taking the video as input and the watermark image as a parameter. By default the watermark will appear in the top left corner. This can be modified by attributing different values to the optional x and y parameters. The watermarked video is then automatically downloaded.

Concatenate Videos

To merge two or more videos together sequentially, a User Action can be added to the Document List Toolbar so that Video documents in the same folder can easily be selected and concatenated:

- Seam.GetSelectedDocuments
- Video.Concat
- WebUI.DownloadFile

The resulting video is then automatically downloaded. The videos you wish to concatenate should all be of the same format.

Slice Videos

You can edit the length of the videos using the Video Slice operations. The following automation chain will download a zip file with 5-second snippets of the original video:

- Context.FetchDocument
- Video.SliceInParts:
    duration: 00:00:05
- Blob.CreateZip:
    filename: SlicedVideos
- WebUI.DownloadFile

Or you can specify the start time and duration of the clip and download it directly:

- Context.FetchDocument
- Video.Slice:
    duration: 00:00:10
    encode: 'true'
    startAt: 00:00:23
- WebUI.DownloadFile
Extract Video Subtitles

Creating a separate transcript of a Video document is easily done if the video has subtitles. By adding a User Action that triggers the following automation chain on all Video documents, you can instantly download a simple text file of the video's subtitles.

- Context.FetchDocument
- Video.ExtractClosedCaptions:
    outFormat: ttxt
- WebUI.DownloadFile

Exposed Extension Points

The VideoService exposed two extension points:

  • videoConversions : Extension point to contribute video conversions that will be available on the VideoService.

    Default conributions

    <extension target="org.nuxeo.ecm.platform.video.service.VideoService"
      point="videoConversions">
      <videoConversion name="MP4 480p" converter="convertToMP4" height="480"/>
      <videoConversion name="WebM 480p" converter="convertToWebM" height="480"/>
      <videoConversion name="Ogg 480p" converter="convertToOgg" height="480"/>
    </extension>


  • automaticVideoConversions : Extension point to contribute which video conversion should be done automatically (through the videoAutomaticConversions listener).

    Default contributions

    <extension target="org.nuxeo.ecm.platform.video.service.VideoService"
      point="automaticVideoConversions">
      <automaticVideoConversion name="MP4 480p" order="0" />
      <automaticVideoConversion name="WebM 480p" order="10" />
    </extension>


Audio

Schema

  • audio: Used to store audio related information.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.nuxeo.ecm.platform.audio.doctype--schema.

Facets

  • Audio: Facet to put on document types that should be considered as Audio. This facet comes with the following schemas: file (to store the audio file), and audio.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.nuxeo.ecm.platform.audio.doctype--doctype.

Document Type

  • Audio: This is the default type in the Nuxeo Platform that handles audio files. It comes with the Audio facet.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.nuxeo.ecm.platform.audio.doctype--doctype.

File Manager Plug-in

The plug-in AudioImporter is contributed to the File Manager to create Audio documents when the imported file mime type matches audio/*.

See http://explorer.nuxeo.org/nuxeo/site/distribution/latest/viewContribution/org.nuxeo.ecm.platform.audio.filemanager.contrib--plugins.




2 months ago Loubna Benzaama Fix Showcase Content add-on doc
3 years ago Manon Lumeau 53
3 years ago Solen Guitter 52 | Restrict TOC max level to h3
3 years ago Manon Lumeau 51
3 years ago Solen Guitter 50
3 years ago Solen Guitter 49
3 years ago Solen Guitter 48 | Remove DAM compat link, add link to How to Contribute Picture Conversions´╗┐
3 years ago Solen Guitter 47
4 years ago Manon Lumeau 46
4 years ago Manon Lumeau 45
4 years ago Manon Lumeau 44
4 years ago Manon Lumeau 43
4 years ago Manon Lumeau 42
4 years ago Vladimir Pasquier 41
4 years ago Solen Guitter 40 | 7.2: IPTC metadata are not displayed anymore
4 years ago Solen Guitter 39
4 years ago Manon Lumeau 38
4 years ago Thomas Roger 37
4 years ago Solen Guitter 36
4 years ago Solen Guitter 35
4 years ago Solen Guitter 34 | Add related pages
4 years ago Solen Guitter 33
4 years ago Solen Guitter 31
4 years ago Solen Guitter 32
4 years ago Solen Guitter 28
4 years ago Solen Guitter 29
4 years ago Solen Guitter 30
4 years ago Solen Guitter 27 | Merging Nuxeo DAM user, admin and dev documentation
4 years ago Solen Guitter 26
4 years ago Solen Guitter 25
4 years ago Thomas Roger 24
4 years ago Thomas Roger 23
4 years ago Solen Guitter 22 | Add installation
4 years ago Solen Guitter 21
4 years ago Solen Guitter 20
4 years ago Thomas Roger 19
4 years ago Thomas Roger 18
4 years ago Thomas Roger 17
5 years ago Solen Guitter 16
5 years ago Solen Guitter 15
6 years ago Solen Guitter 13 | Fixed broken link
6 years ago Solen Guitter 14 | Migrated to Confluence 4.0
6 years ago Solen Guitter 11 | Updated link to PDF to download 5.6-SNAPSHOT version
6 years ago Solen Guitter 12 | Replaced Mercurial with GitHub and moved page to the technical documentation space
7 years ago Solen Guitter 10 | Fixed broken link
7 years ago Solen Guitter 9 | Fixed PDF icon not diplayed anymore
7 years ago Solen Guitter 8
7 years ago Thomas Roger 6
7 years ago Thomas Roger 7
7 years ago Solen Guitter 5 | Added PDF download panel
7 years ago Solen Guitter 4
8 years ago Jane Zupan 2
8 years ago Jane Zupan 3
8 years ago Alain Escaffre 1
History: Created by Alain Escaffre

We'd love to hear your thoughts!

All fields required
