Nuxeo Platform User Documentation

Browse

Updated: September 26, 2017 Page Information Edit on GitHub

Follow the related video course and exercises on Nuxeo University.

In order to help you find the documents that you need, the Nuxeo Platform features several options to access, create and edit documents.

Browsing Content

Side Menu

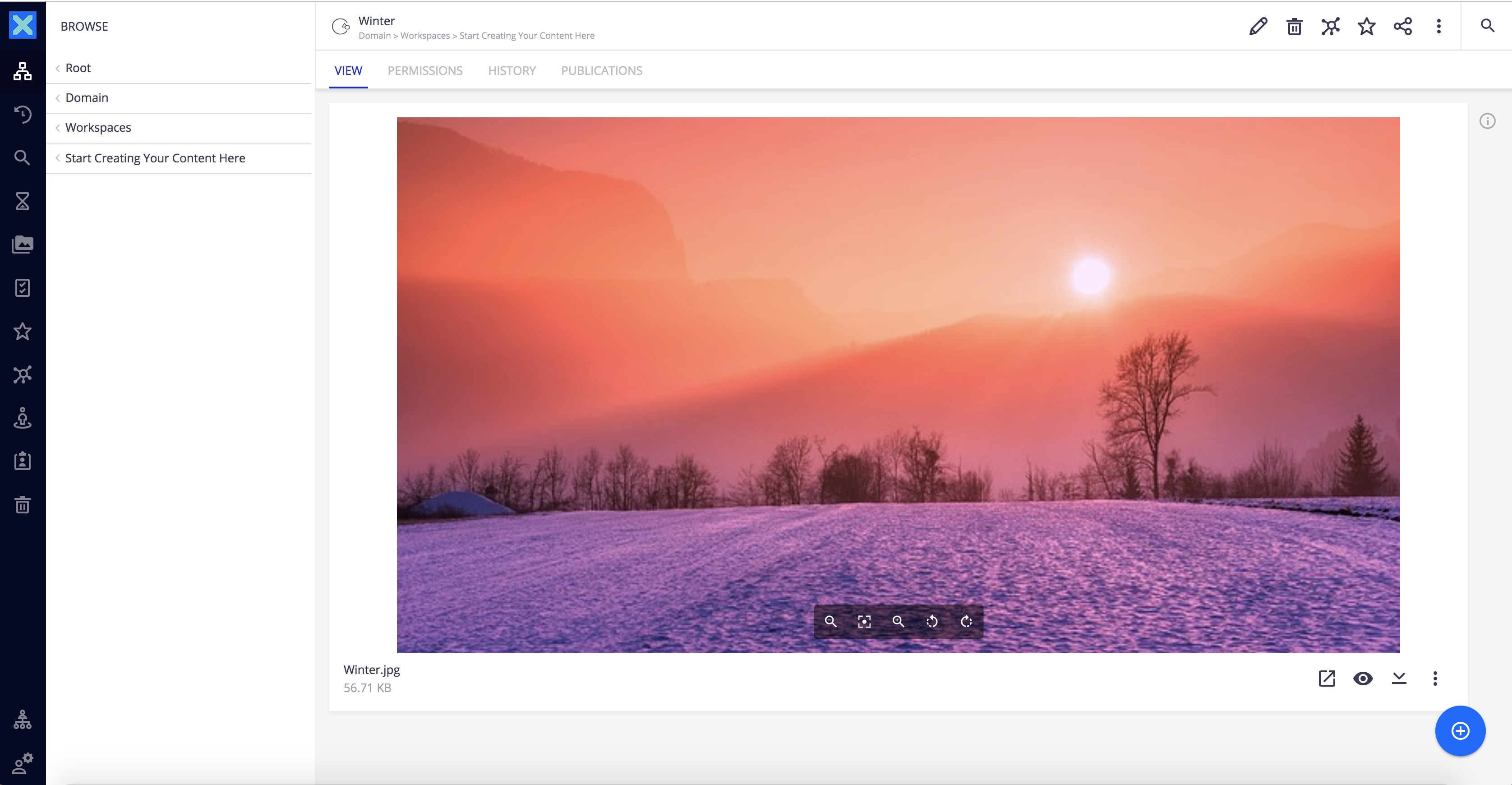

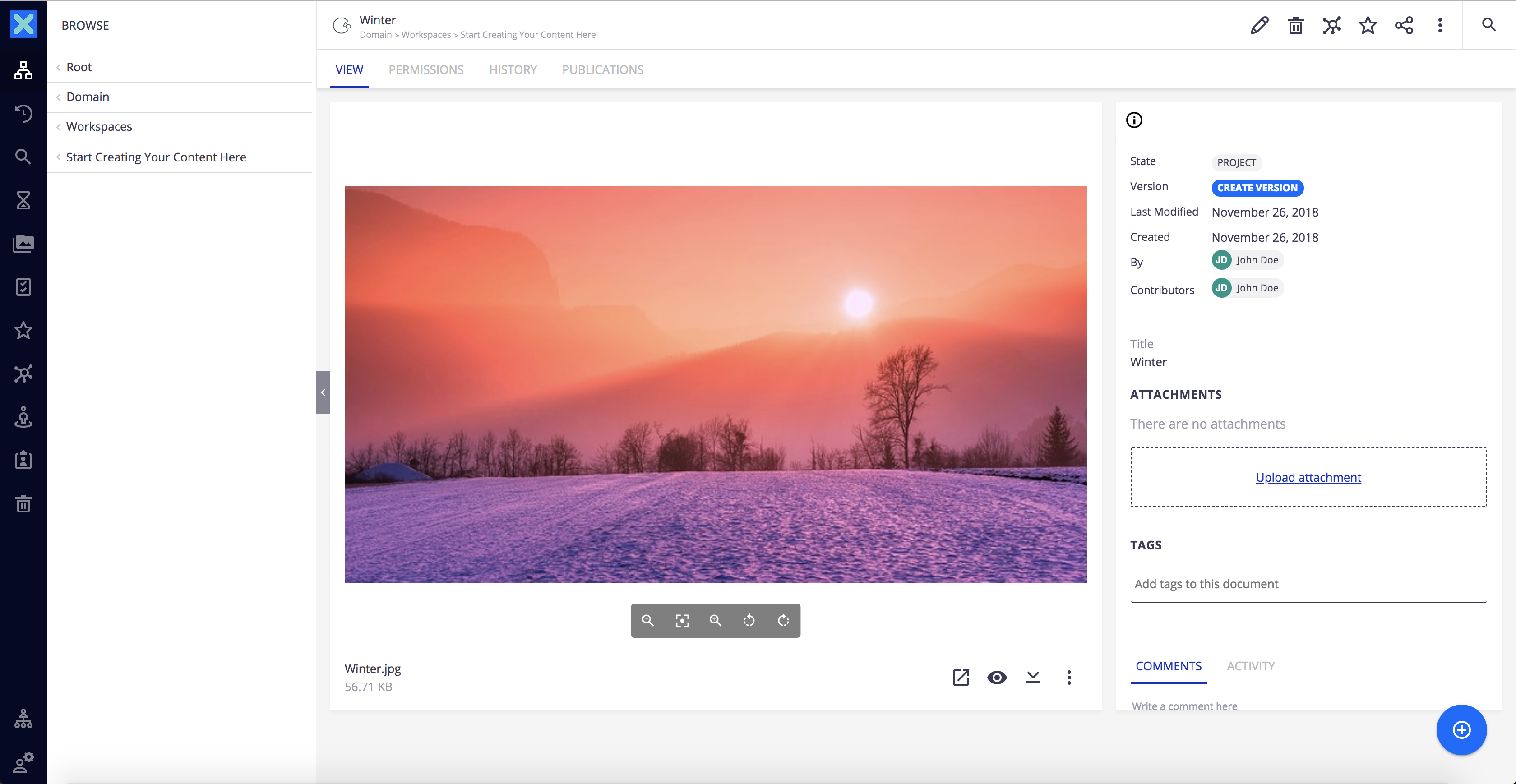

The side menu offers two different tabs. Clicking on elements on the left will open a side panel (also called Drawer) with the content of the tab selected: browsing options are on the first left column, content to browse on the second and content to view on the main area. This new pattern allows to start browsing without changing the context of work. The side menu displays all the domain structure from the root. It enables you to easily access any space in the application structure.

Dashboard

Every user has a personal dashboard that displays information he finds relevant and help him have a global view of the application's activity.

The dashboard is composed of a set of boxes that display either a list of documents matching a criteria (all the workspaces the user can access, the last documents he modified, the last documents that have been published...), or possibly a piece of information either from the Platform or from external websites.

To access your dashboard, click on the icon on the top left hand corner of your platform.

Browsing Lists of Documents

Users can change the way content is presented in the folderish repositories (workspaces, folders, sections) and search results.They can also change the displayed information.

Changing View Mode

Two views of the content lists are available on the top right corner of your workspace

  • Table View (default view): This view displays the title of the documents with a small icon (that depends on the type of document or main attachment type) and a set of metadata in a table

  • Grid View : This view displays a thumbnail of documents. For folders, the thumbnail of the first item in the folder is displayed.

Changing Displayed Information

Lists of documents, whether in grid view or thumbnail view, show some information about the documents, like their title, the last contributor, their lifecycle state, etc. Users can change the information displayed, i.e. the columns for the list view or the information below the document thumbnail in thumbnail view.

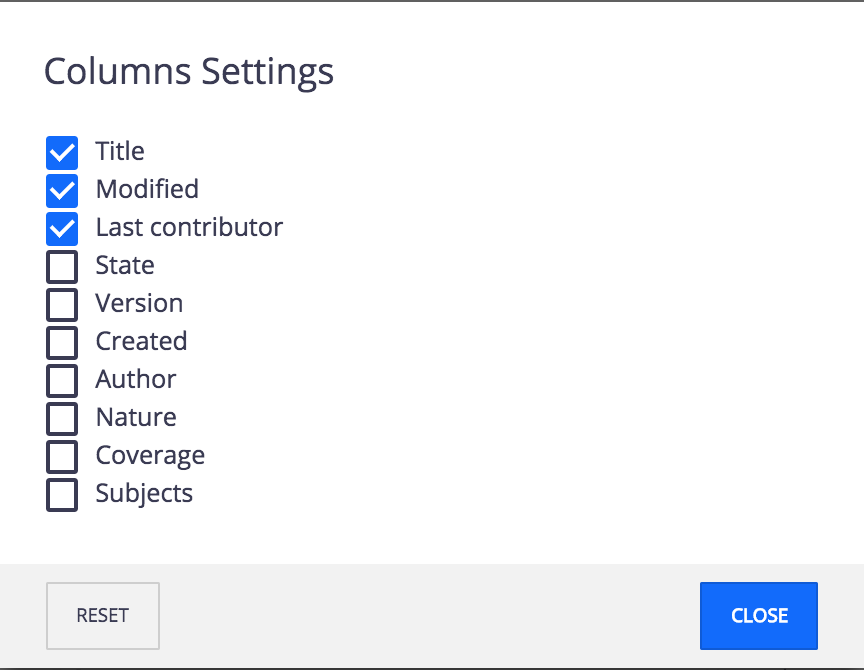

To change the information displayed in content views, click on the icon . A pop-up is displayed: select the information that you want to be displayed among the list.

Once it's done click on Close.

The displayed information can also be changed from the Search view.

The information displayed on content views can be filtered with filters at the top of every columns.

Access Keys

Some actions or features are accessible using access keys:

  • c: Create
  • d: Dashboard
  • s: Search
  • shift + /: Search

Creating Content

Creating a Document Using the Create Button

Creating a document using the button enables you to select the type of document you want to create among all Nuxeo Platform's document types.

To create a document using the Create button:

  1. Click on the button and click on the desired document.
  2. Fill in the document's creation form and click on the Create button.

The View tab of the document is displayed.

Importing Documents Using Drag and Drop

Drag and drop is based on the HTML 5 standard and is available on all browsers that support the HTML 5 Drag and drop, without extension. Basically, this includes all browsers supported by the Nuxeo Platform and the Web UI:

You can use drag and drop to easily import content into a workspace or just to create one document at a time. Two types of import are available:

  • Quick import, that enables to quickly create documents in workspace
  • Import with properties, that enables to fill in metadata of the document(s) before they are created in the workspace

Quick Import of Documents

To import content into Nuxeo, drag an item from your computer and drop it into a workspace. The document is then automatically created in the workspace and its title is the name of the original file, and no properties are filled in.

  • You can drag and drop one or more files of any type in Nuxeo, directly in the workspace concerned.
  • You can also drag and drop one or more files of any type from the Import tab of the creation popup. On this popup you can also edit the location of your import.

Import with Properties

It is possible to do a drag and drop import of documents with an additional step to fill in some properties. This prevents you from editing the documents after the import is done.

To import documents with metadata:

  1. Drag your file from your desktop to the workspace main area in the browser. The file is uploaded. When the upload is done, the creation popup on the Import tab is displayed.

  2. Click on ADD PROPERTIES.

  3. Fill in the properties that you need and then decide if you want to EDIT NEXT or APPLY TO ALL your modifications.
  4. Once it's done click on CREATE.

The file is created with the filled in properties.

Creating Content Using Nuxeo Drive

You can very easily import document by moving them from a desktop folder to a Nuxeo Drive folder, or creating office files directly in a Nuxeo Drive folder. Read the Nuxeo Drive documentation for more information.

Automated Metadata Extraction

The Nuxeo Platform enables to extract information from the uploaded files attached to a document and automatically fill in the document metadata at creation time. This enables you to leverage metadata existing outside the Nuxeo Platform to automatically categorize documents, preventing users from editing document to report these metadata. Automated metadata extraction is activated by default on Nuxeo DAM: The IPTC legend, copyright and source are used to automatically fill in the description, rights and source metadata of pictures.

Read the Binary Metadata documentation for more information.

Editing Content

Editing a document means modifying its content (i.e. the attached file of a file document, the text of a note, etc.), or simply editing the title, description or any property of the document.

Editing Properties

Properties of the documents, aka metadata, help the document to be more accurately referenced. Some properties are automatically filled in by the system, but most of them need to be filled in by users. When you create a document (file, note, workspace, section, or any other document type), its properties are empty.

The Nuxeo Platform uses Dublin Core metadata by default, although not all of them are necessarily displayed to the user by default. Dublin Core metadata are:

FieldDescription
Nature Nature of the document. Values come from the nature vocabulary.
Subjects Topic(s) of the document. Values come from the I10nsubjects vocabularies.
Rights Information about the reproduction rights of the document. Rights informations often encompass Intellectual Property Rights and Copyright.
Source The references of the resource from which the document's content is derived (totally or partially).
Coverage Information about the geographic reach of the document. Values come from the I10ncoverage vocabulary.
Created at Date automatically filled in by the system when the document is created.
Last modified at Date automatically filled in by the system when the document is modified.
Format Format of the document, if any is preferred.
Language Language used in the document.
Expire on Date on which the document stops being valid. Click on the calendar icon to select a date. This date is not indexed in the system. It is just in indication for users but it is not processed by the application.
Author User who created the document. This field is automatically filled in by the system.
Contributors Users who modified the document. This field is automatically filled in by the system.
Last contributor Last user who modified the document. This field is automatically filled in by the system.

Although properties are not mandatory, filling them in will make your documents easier to find using Nuxeo search engine.

To edit a property:

  1. Click on the Edit button
  2. Edit the metadata that you want.
  3. Once it is done, click on SAVE

Exporting Content

Users can export documents on their computer. It is possible to export:

  • One document at a time
  • An entire workspace, folder, section

Exports Available

From a Folder

  • The XML export is a low level export that enables users to either get the XML definition of the document or get a folder for each exported document that contains:
    • document.xml file holding the document's metadata and various information such as the applied access rights,
    • A .blob file that holds the binary content of the document. This blob is referenced in the document.xml file;
  • The ZIP export enables you to export a whole workspace, section or folder in a zipped XML folder. This export is only available on folderish documents.

From a Document

  • The PDF export enables you to get a PDF version of your document. This export is only available on non-folderish documents.
  • The ZIP Export enables you to get a zipped folder with the documents' main attachment (.pdf, .doc files). This export is only available on non-folderish documents.
  • The XML export is a low level export that enables users to either get the XML definition of the document or get a folder for each exported document that contains:
    • document.xml file holding the document's metadata and various information such as the applied access rights,
    • A .blob file that holds the binary content of the document. This blob is referenced in the document.xml file;

The exports are available by clicking on the export button .

Low-Level Exports

XML export is a low level export that enables users to get a set of information on documents in an XML file. This export type is useful for debugging, and as such, is mainly intended to administrators. You can export:

  • A single document
  • The structure of a folder

XML Export of a Single Document

The XML export of a document enables users to get a folder for the exported document that contains:

  • A document.xml file holding the document's various information (the applied access rights, the document's metadata, its path)
  • A .blob file that holds the binary content of the document. This blob is referenced in the document.xml file

To get the XML export of a document, from the document, click on the icon  and select ZIP Export.

If you're only interested in the XML file of the document, click on XML Export. The XML file should open in a new tab or window (depending on your browser's preferences).

When you unzip it, you get a folder named from the document, that contains a document.xml file and .blob for each attachment of the document.

XML Export of a Folder

It is possible to export a whole workspace, section or folder in a zipped XML folder. This specific export enables users to import the folder back, with the same access rights definition.

To get the XML export of a folder, from the folder (or workspace or section), click on the icon  and select ZIP Export on the popup window.

If you're only interested in the XML definition of the folder, click on XML Export. The XML file should open in a new tab or window (depending on your browser's preferences).

When you unzip it, you get a folder named from the document, that contains a document.xml file and .blob for each attachment of the document.

Deleting Content

Only users with "Edit" or "Manage everything" permissions can delete documents from a space.

From Workspace View

To delete one or several documents, select them in your workspace and click on the delete icon  in the selection toolbar.

From Document View

On the document itself you can decide to delete the file of your document by clicking on the Delete icon  next to its title and add a new one.

Versioning

Document versions enable you and other users to easily revert to a specific version of the document if needed, without having to edit the document. The Nuxeo Platform offers both automatic and manual versioning of documents.

Every document holds a version number, which is a piece of information about the evolution of the document. A version number (V.v) is composed of a major version number (V) and a minor version number (v). When a document is created, its version number can be 0.0, 0.1 or 1.0 depending on automatic versioning rules. Minor version increment are typically used for secondary changes. Major version increment is usually reserved to significant modifications. When a document is edited without a new version being created, the version number is suffixed with a + (0.1+ for instance), to indicate that the version was modified since it was created.

Version number 0.0
Version number 0.0 is considered as a draft of the document, which will need to be saved into a first version, either minor or major. Draft version 0.0 is not archived.

Automatic Versioning

Two automatic versioning behaviors are applied by default: one for files (and associated document types) and one for notes.

  • Files and other document types with schema file:file, like pictures, are created in version 0.0. A new minor version is automatically created when you edit a document that was last modified by another user. This minor version holds the modifications of the previous contributor, so that no data is lost. Your changes are applied on top of this version, the version number becoming for instance 0.1+. When you edit a document that was last edited by yourself, no version is automatically saved. You can however decide to manually create a new version of the document.

  • For notes, a new version is created for every modification, whether you are the last contributor of the note or not. The created version holds the your changes. When they are created, notes have a version number of 0.1.

This automatic versioning applies in case of:

  • Modification of the main file or its attachments using drag and drop
  • Manual edit of the attachments
  • Modification of the document (main file, properties, attachments) via bulk edit

The following actions don’t trigger the automatic versioning of the document:

  • Tagging the document
  • Adding the document to a collection
  • Changing the relations of the document
  • Commenting the document

Version number 0.0
Automatic versioning is disabled on CMIS connector due to conflict between our specifications and CMIS specifications.

Manual Versioning

You can decide to manually create a new version of the document.

In case of a file document types the automatic version is done first and then the manual version. So if you edit the document and select the option “Increment major version”, a minor version is created and then a major version: the minor version is the automatic one holding the previous contributor’s work, and the major one is the manual version with your modifications. If you select “Increment minor version”, two minor versions are created following the same principle. And if you chose “Skip version increment”, only the automatic versioning behavior is applied and the document version number is 0.1+ for instance.

For notes, if you use the Edit form, only the manual versioning rules applied. Selecting “Increment major version” save your changes in a major version, “Increment minor version” saves them in a minor version and choosing “Skip version increment” doesn’t create a new version and the version number is +ed (0.1+ for instance).

To create a new version of your document:

  1. Go on the View tab of the desired document.
  2. In the top right section of metadata, click on Create Version.
  3. Select the version that you want and click on Create Version to confirm.

Nuxeo Drive Versioning Policy

When you edit a document, either from your Nuxeo Drive folder or using the online editing, a new version is automatically created on the Platform and the version number is updated:

  • If you are not the last contributor of the document
  • Or if your last edit is more than an hour ago

Then, if your document's version was 1.0 before modification for instance, it automatically becomes 1.1+ after you edited it from the Nuxeo Drive folder and the 1.1 is archived as it is created. Otherwise, a simple modification is done on the document and logged in the document's History.

See the page How to Customize Nuxeo Drive Versioning Policy to change this behavior.

Document Actions

The document actions toolbar displays all the actions available for the current document.

Share a Document

The button gives you the permanent link to the document concerned, in order to easily share it.

Alerts

Alerts are emails automatically sent to users when an event occurs in a space to enable you to follow the activity of a document or a space.

When you follow a document or a space activity, you get an email when the events below happen:

  • Creation: you get an email when some content is created in the space
  • Modification: you receive an email every time the space or its content is edited
  • Workflow changed: you receive an email for each action that happens during a review (start, abandon, document approval, document rejection)
  • Approval workflow started: you receive an email every time an approval workflow is started
  • Comments moderation: you receive an email when a comment is approved on a site
  • Publish: you receive an email when a document is published in the specified section

    The publish event is available in sections only. The other events are available in workspaces only.

Lock / Unlock

When you need to work on a document for some time, you don't want other users to edit it at the same time and disturb your own work. This is typically the case where you lock the document by clicking the icon .

A locked document remains visible to other users but only the locker and users with Manage everything permission can edit it. Other users can see the document locked through the icon . A tooltip indicates who locked the document and when.

Users with Management everything permission can unlock document on other users' behalf so a document does not remains locked during the locker's vacation and blocks other user's work, for instance.
