Nuxeo Platform User Documentation

Tasks

Updated: March 2, 2017 Page Information Edit on GitHub

All the documents evolve according to a defined lifecycle. The default lifecycle is composed of the following states: Project, Approved, Obsolete and Deleted. There are different ways to make documents evolve through this lifecycle. One of them is to use a workflow.

Users who are involved in workflows are alerted by email and can have a synthetic view of all their pending tasks on documents in their dashboard or on the Task tab. The documents they have to review are listed there.

The Nuxeo Platform proposes two default workflows that showcase the possibilities of the Workflow.

  • The default serial workflow, called "Serial document review", is an ordered workflow. This means that participants can review the document only when the previous participant in the list has approved the document. It can be used either to approve the document or simply to review it.

  • The default parallel workflow, called "Parallel document review", is an unordered workflow that enables to change the document's state after a consultation step. This means that participants can give their opinion on the document without having to wait for a previous participant to approve it.

A task represents what a workflow instance expects from a user or a group of users. Usually they are expected to give some information through a form and click on a button (like Accept, Reject, Confirm, Notify, Transform, etc.). A task usually has one or several assignees, a title, a directive and an expected date of achievement. The task assignees can be specified directly in the task definition or can be dynamically computed.

Starting a Workflow on a Document

You need to have editing or management permissions to start a workflow on a document.

Tasks assigned to a group
A task assigned to a group is displayed to all the members of the group. As soon as a member of the group approves or rejects the document, the task is completed and the workflow continues.

Serial Document Review

  1. Go on the document that you want to review.
  2. In the process section, on the side menu, select the Serial document review from the drop down list and click on Start.
    An info bar is displayed at the top of the document to inform that a process has been started on this document.
    A Process button is available in this info bar, it will let you handle your task.
  3. Click on the Process button.
    A new section is displayed with a View Graph button that displays the workflow route in a pop-up window.
  4. In the Participants field, type the name of a user or a group you want to add on the workflow and select it in the drop down list. Repeat these two steps to add all the participants to the review. Optionally click or the icon to remove them.
  5. Select the type of review you want to do:
    • Simple review: the document's state will not change;
    • Validation: when all the reviewers have approved the document, it goes to the Approved lifecycle state.
  6. Click on Start the review once everything is ready, to let participants approve or reject the document.

Parallel Document Review

  1. Go on the document that you want to review.
  2. In the process section, on the side menu, select the Parallel document review from the drop down list and click on Start.
    An info bar is displayed at the top of the document to inform that a process has been started on this document.
    A Process button is available in this info bar, it will let you go to the next step of your task.
  3. Click on the Process button.
    A new section is displayed with a View Graph button that displays the workflow route in a pop-up window.
  4. In the Participants field, type the name of a user or a group you want to add on the workflow and select it in the drop down list. Repeat these two steps to add all the participants to the review. Optionally click on the icon to remove them.
  5. Type a comment for the reviewers, for instance if you want them to pay attention to a specific section of the document.
  6. Select the due date by when the participants need to have reviewed the document.
    When the due date is passed, the consultation task is automatically closed to all reviewers that haven't provided their opinion on the document and the workflow goes to the next step: the initiator approval.
  7. Click on Start the Review to let participants give their opinion on the document.
    The document is locked so that only the workflow initiator can edit the document.
    On the Task tab and on the dashboard, the current task and the previous ones are displayed. All reviewers get a Consultation task in their dashboard and task tab.

Handling Tasks

Once the workflow has been started, users added on the workflow's roadmap can review the document and approve or reject it.

When they have a task on a document, users are displayed it on their dashboard in the Tasks gadget and in the Task tab.

The participants of a workflow can:

  • Edit the document: permissions to the document are temporarily modified by the system to enable the reviewers to edit the document if their permissions didn't allow them to
  • Approve the document
  • Reject the document

Participants can approve the document when it's their turn, after the previous participant on the workflow has approved it. Participants automatically get Edit permission on the document for the time they have a task to perform on the document, if they had Read permission or no access to the document.

Participating to a Serial Document Review

To approve or reject the document:

  1. Click on the Task tab, all your pending tasks are displayed.
  2. Click on the task that you want to process.
    The document is displayed and a Task resolution section is displayed on the side menu.
  3. Depending on your opinion on the document, click on one of the buttons available:
    • Validate The task is not displayed anymore in the Tasks tab. If you originally had read-only access to the document, you can't edit it anymore. The next participant can now review the document and approve or reject it.
    • Reject The task is not displayed anymore in the Tasks tab. If you originally had read-only access to the document, you can't edit it anymore. The document is automatically sent back to the previous reviewer on the workflow, so he can edit it and approve it again. When the document is rejected by the first reviewer, the document is sent back to the initiator, who can then either modify the document and resubmit it, or cancel the review.

Participating to a Parallel Document Review

After the workflow initiator has started the parallel workflow, two steps need to be completed:

  • Reviewers need to provide their opinion on the approval of the document: would they approve the document, reject it, or do they not have an opinion. That's the Consultation step, in which there is no order between the participants.
  • The Workflow initiator can then approve or not the document, after seeing the result of the consultation step. That's the Validation step.

To approve or reject the document:

  1. Click on the Task tab, all your pending tasks are displayed.
  2. Click on the task that you want to process. The document is displayed and a Task resolution section is displayed on the side menu.

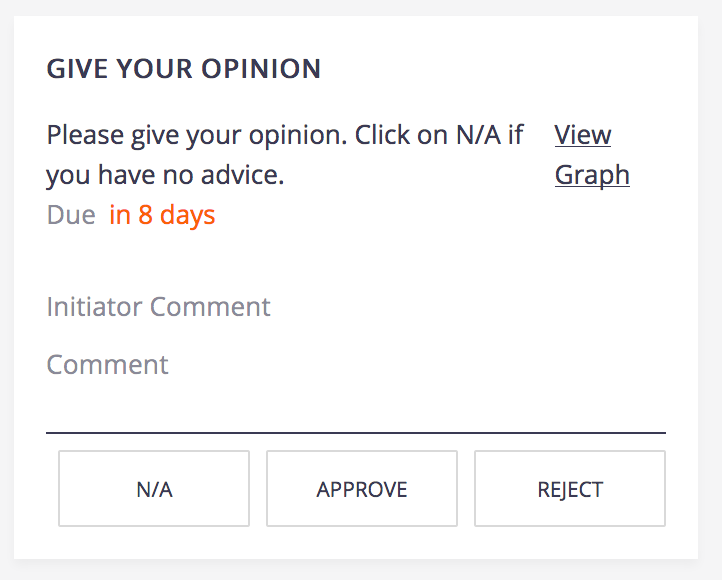

  3. Click on one of the buttons to provide your opinion on the document validation:
    • Approve: you agree with the document being approved;
    • Reject: you think that the document is not ready to be approved;
    • N/A: you are not concerned by the document or don't have an opinion about its validation.

Your consultation task is done. The task is removed from your dashboard and your Tasks tab.

Final Validation of the Document

When all reviewers have done their consultation task, the document goes back to the initiator of the review so he can see the opinion of the reviewers and approve or reject the document.
