Actions Display

Updated: October 13, 2017 Page Information Edit on GitHub

This page is scheduled for review and update. Check back soon for updated content!

Actions are grouped in categories to be able to display them in the same area of a page. Widgets can be used to handle rendering of these actions.

Actions are referencing the same category when they need to be displayed in the same area of a page.

The available categories are listed below and can also be found by checking action contributions on the explorer.

CAP Categories

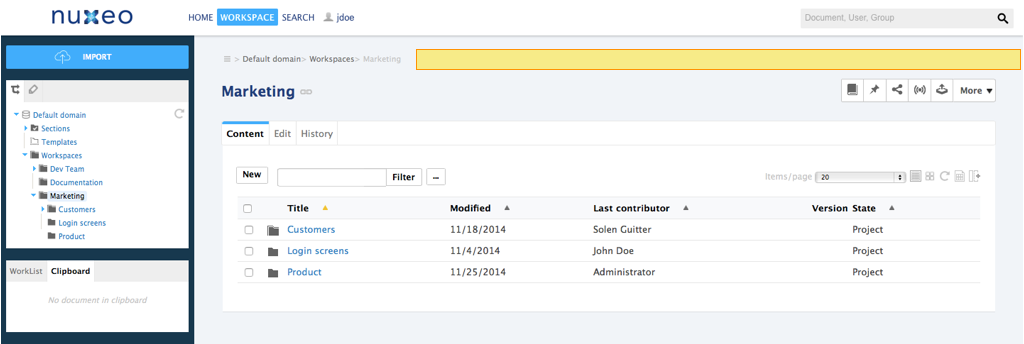

Technical name: BREADCRUMBS_ACTIONS

Available since Nuxeo Platform 5.9.2.

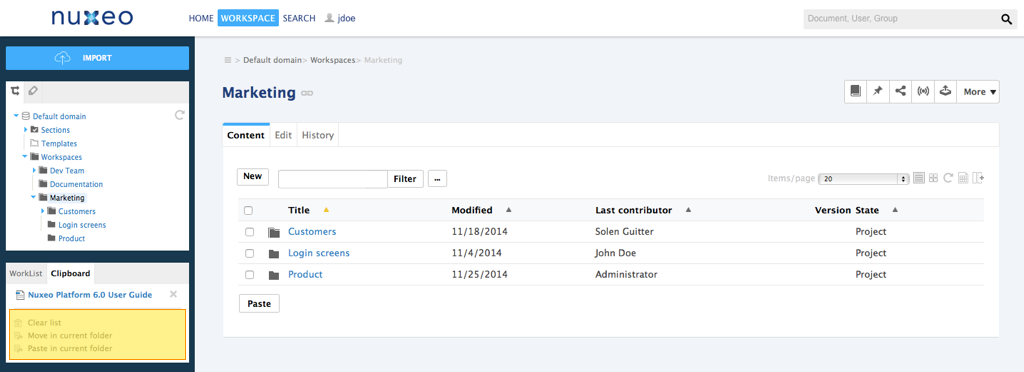

Clipboard

Technical name: CLIPBOARD_LIST

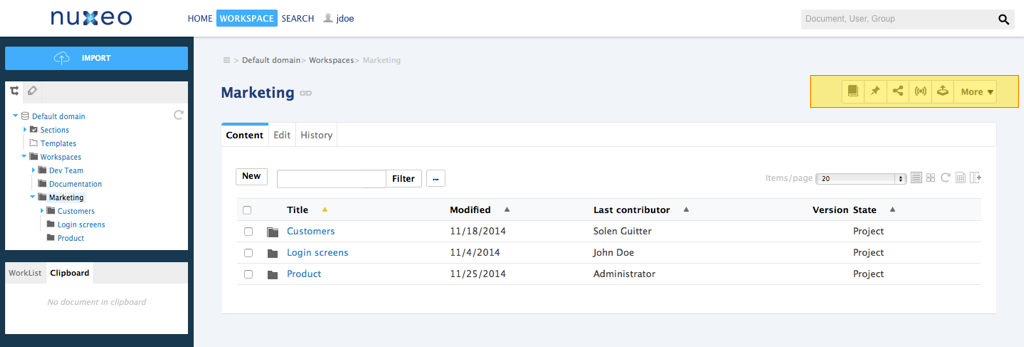

Contextual Tools

Technical name: DOCUMENT_UPPER_ACTION

Unless you specify an icon, the following icon will be used:

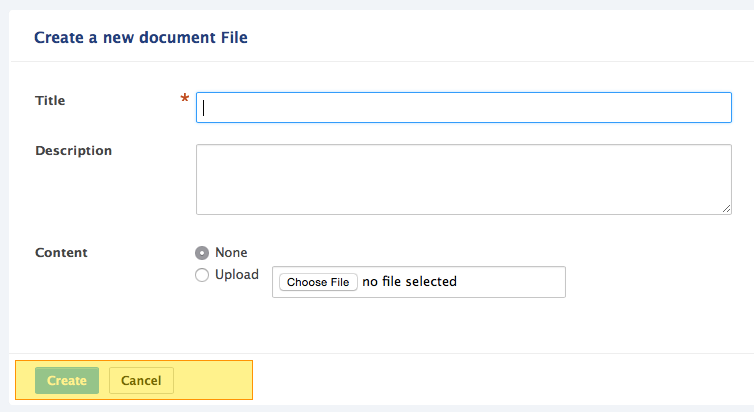

Document Creation Form

Technical name: CREATE_DOCUMENT_FORM

Available since Nuxeo Platform 5.4.2.

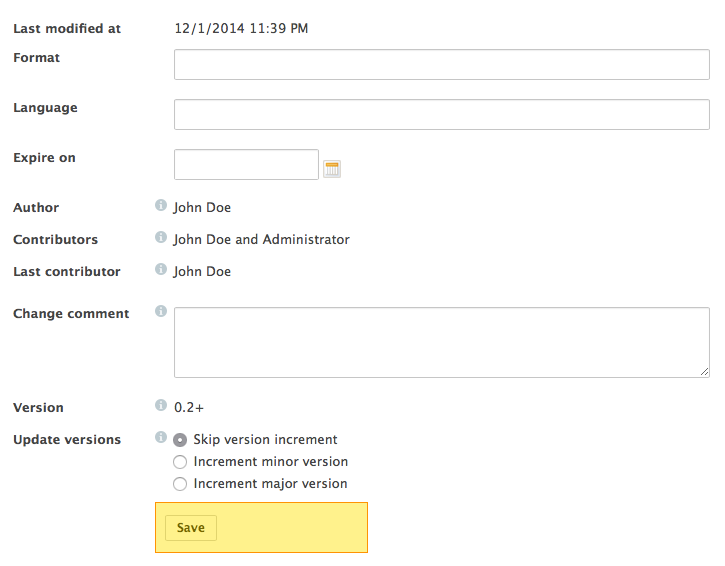

Document Edition Form

Technical name: EDIT_DOCUMENT_FORM

Available since Nuxeo Platform 5.4.2.

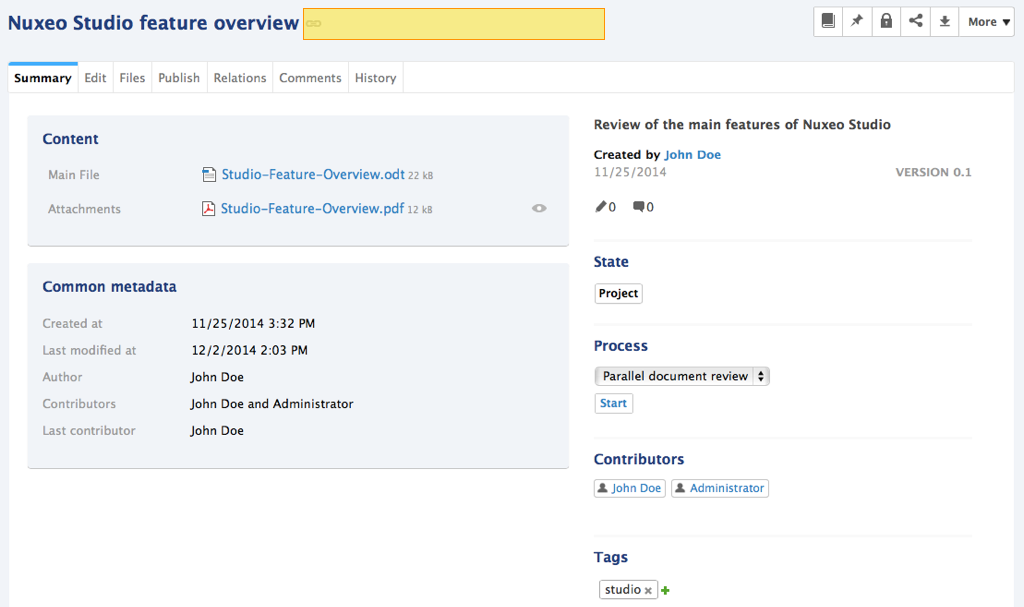

Document Header Actions

Technical name: DOCUMENT_HEADER_ACTIONS_LIST

Available since Nuxeo Platform 5.4.2. This action category requires to use an icon, otherwise it won't be displayed on the UI.

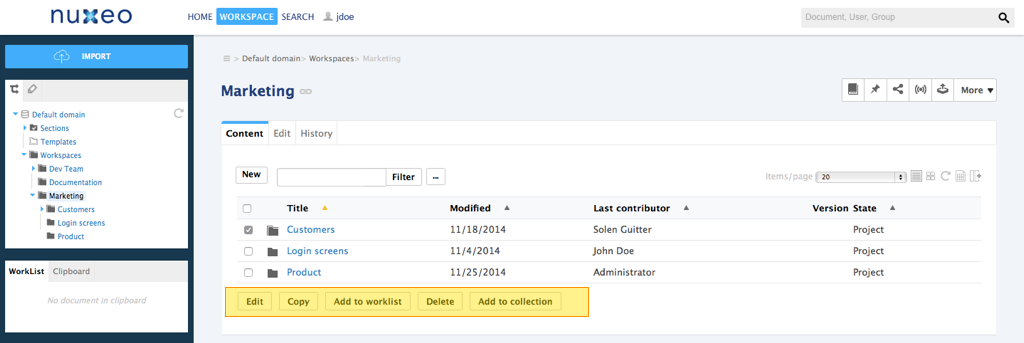

Document List Toolbar

Technical name: CURRENT_SELECTION_LIST

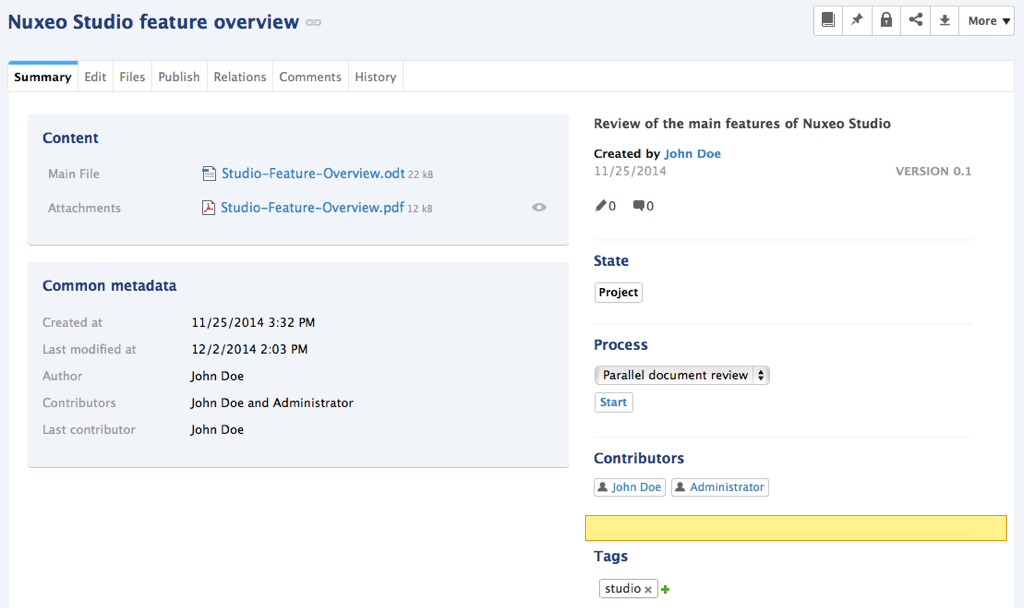

Document Summary Actions

Technical name: DOCUMENT_SUMMARY_CUSTOM_ACTIONS

Available since Nuxeo Platform 5.4.2.

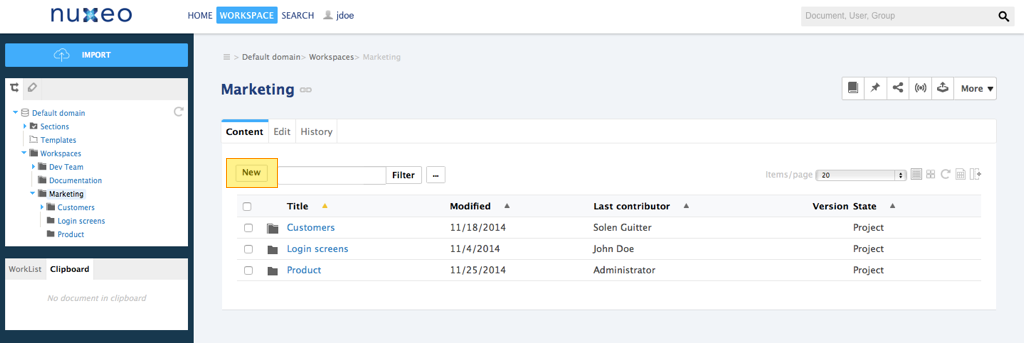

Folder Toolbar

Technical name: SUBVIEW_UPPER_LIST

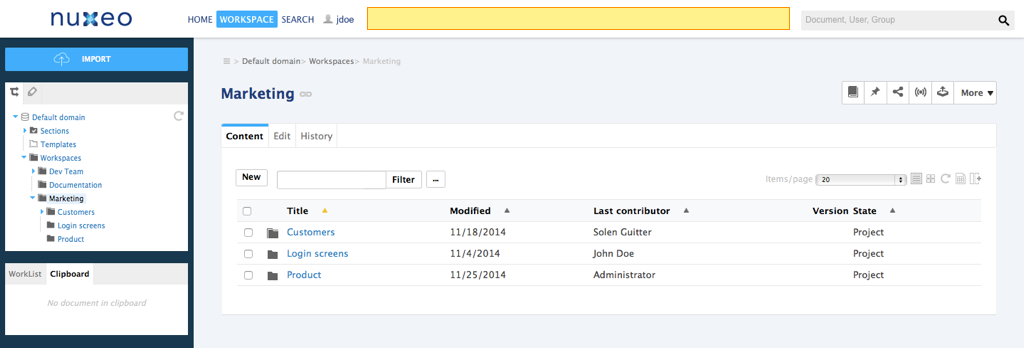

Technical name: USER_SERVICES

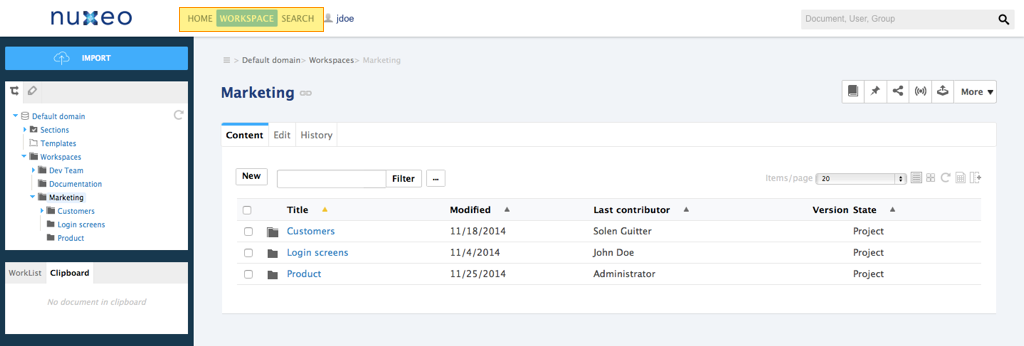

Header Main Tabs

Technical name: MAIN_TABS

Available since Nuxeo Platform 5.8.

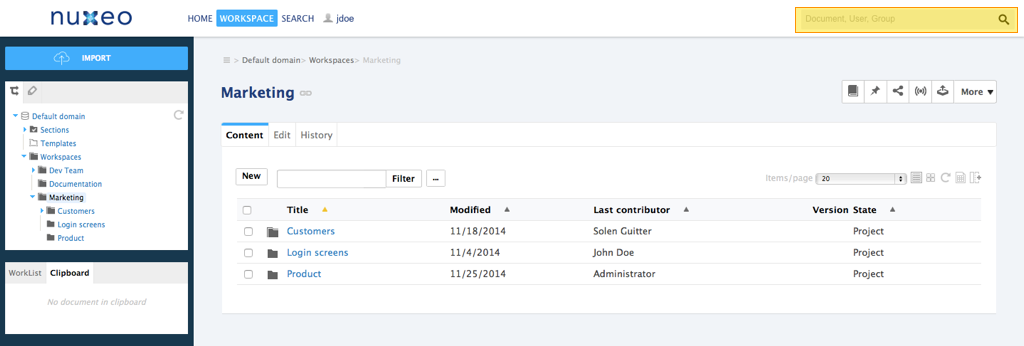

Header Search Actions

Technical name: SEARCH ACTIONS

Available since Nuxeo Platform 5.8.

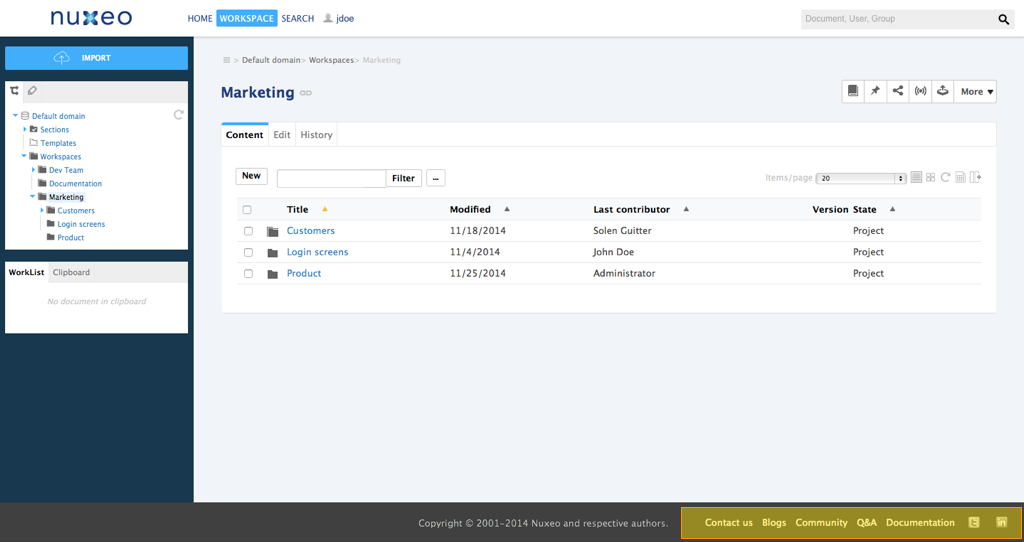

Technical name: FOOTER

Available since Nuxeo Platform 5.8.

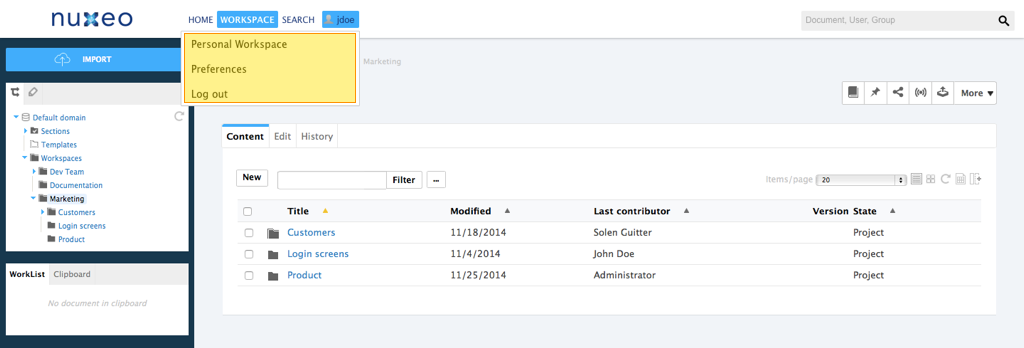

User Menu Actions

Technical name: USER_MENU_ACTIONS

Available since Nuxeo Platform 5.4.2.

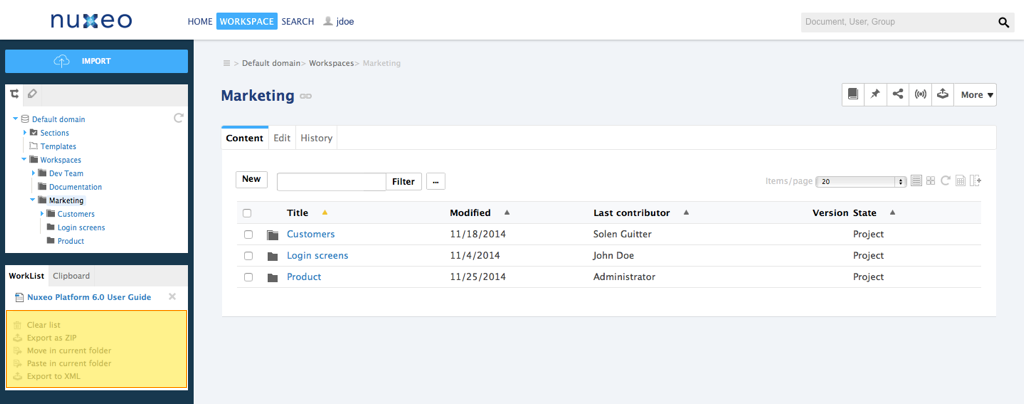

Worklist

Technical name: DEFAULT_LIST

CAP Advanced Categories

These categories can be useful when defining custom actions, that will reference the widgets to display. This is useful when building incremental layouts, like the default summary layout starting from 5.6: the action order and filter information are useful to contribute/display/hide some widgets to the summary default layout.

These categories are not really useful when defining user actions, and the associated features can be broken when migrating from 5.6 to 5.8, as the form around the summary layout has been removed for 5.8 to allow fine-grained form management on this page.

View Action List

Technical name: VIEW_ACTION_LIST.

This category is used for tabs displayed on every document.

<action id="TAB_VIEW" link="/incl/tabs/document_view.xhtml" enabled="true"
  order="0" label="action.view.summary" type="rest_document_link">
  <category>VIEW_ACTION_LIST</category>
  <filter-id>view</filter-id>
</action>

<action id="TAB_CONTENT" link="/incl/tabs/document_content.xhtml" order="10"
  enabled="true" label="action.view.content" type="rest_document_link">
  <category>VIEW_ACTION_LIST</category>
  <filter-id>view_content</filter-id>
</action>

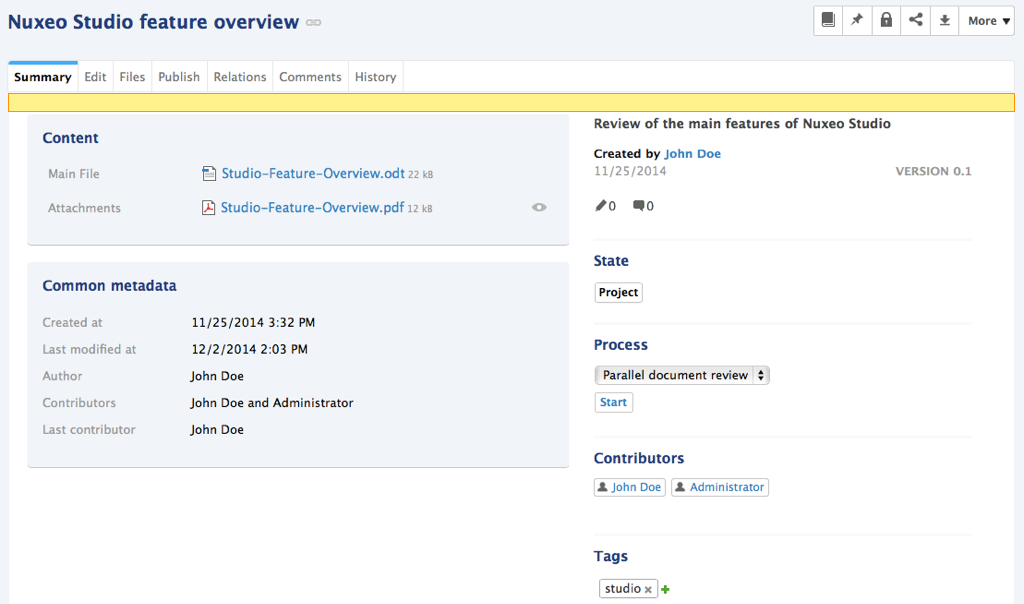

Summary Top Panel

Technical name: SUMMARY_PANEL_TOP

This user action category is not yet fully implemented in Studio (available since Nuxeo Platform 5.6).

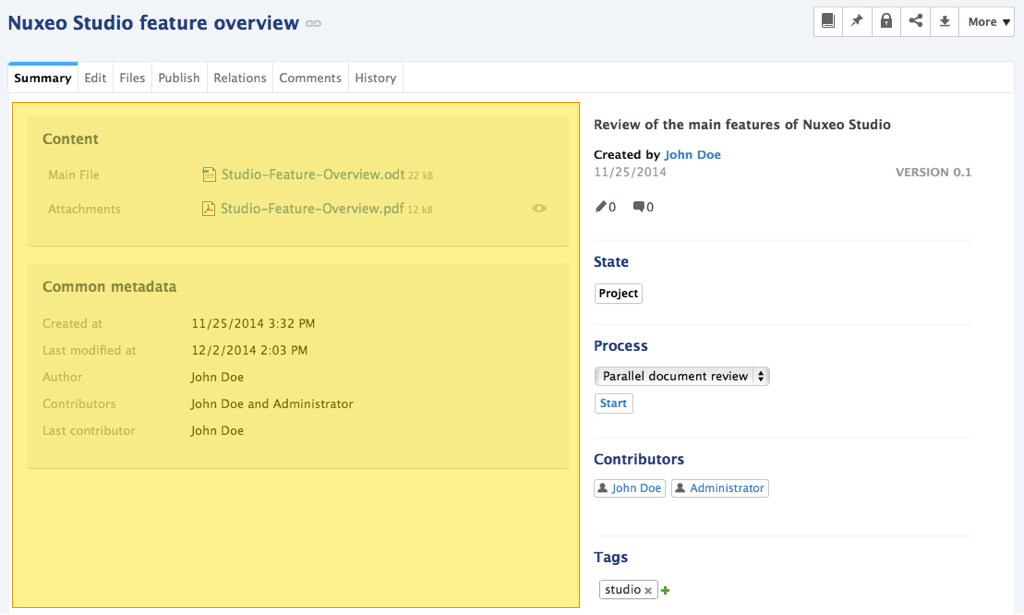

Summary Left Panel

Technical name: SUMMARY_PANEL_LEFT

This user action category is not yet fully implemented in Studio (available since Nuxeo Platform 5.6).

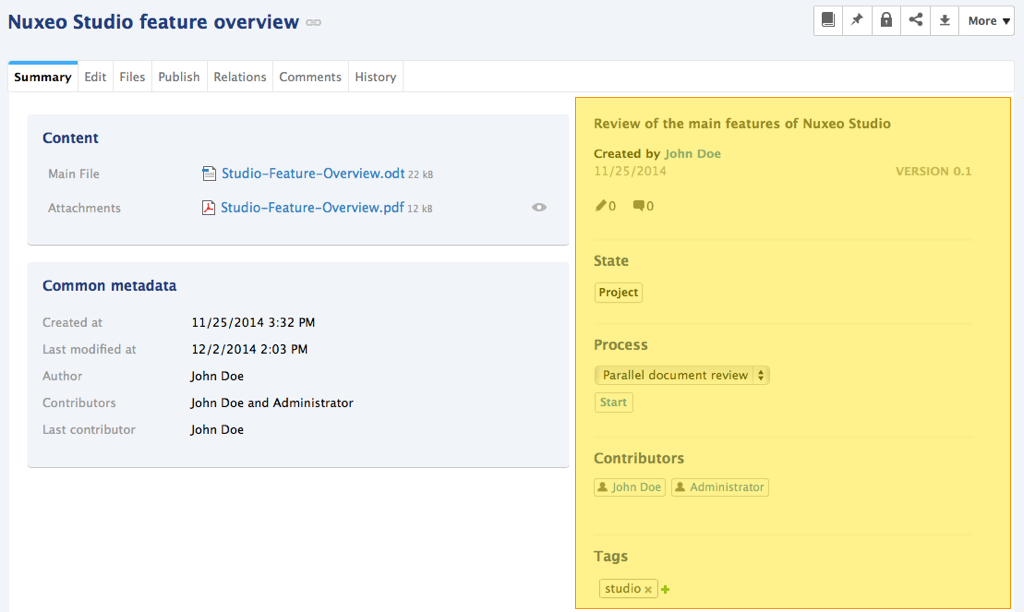

Summary Right Panel

Technical name: SUMMARY_PANEL_RIGHT

This user action category is not yet fully implemented in Studio (available since Nuxeo Platform 5.6).

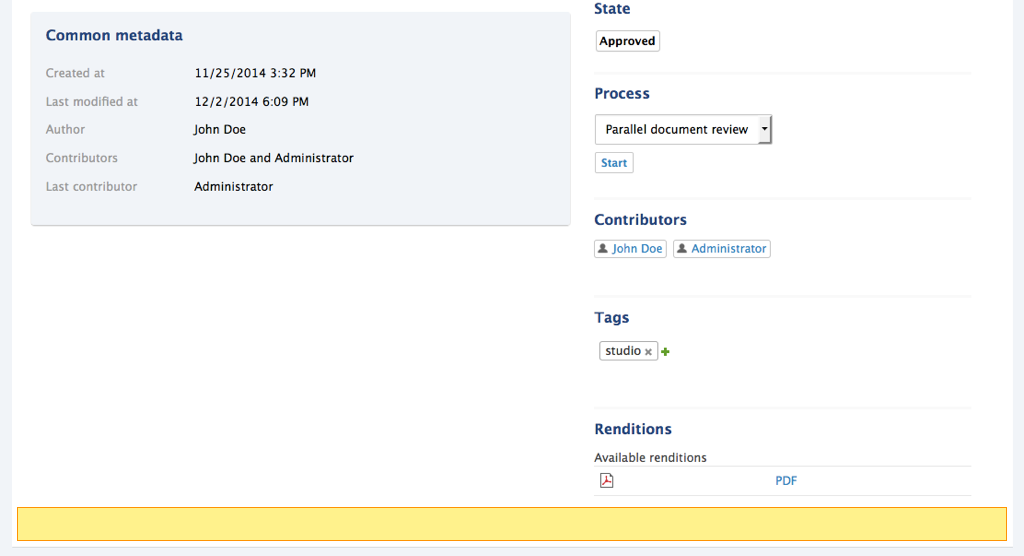

Summary Bottom Panel

Technical name: SUMMARY_PANEL_BOTTOM

This user action category is not yet fully implemented in Studio (available since Nuxeo Platform 5.6).



Content View Actions

Technical name: CONTENT_VIEW_ACTIONS

DAM Categories

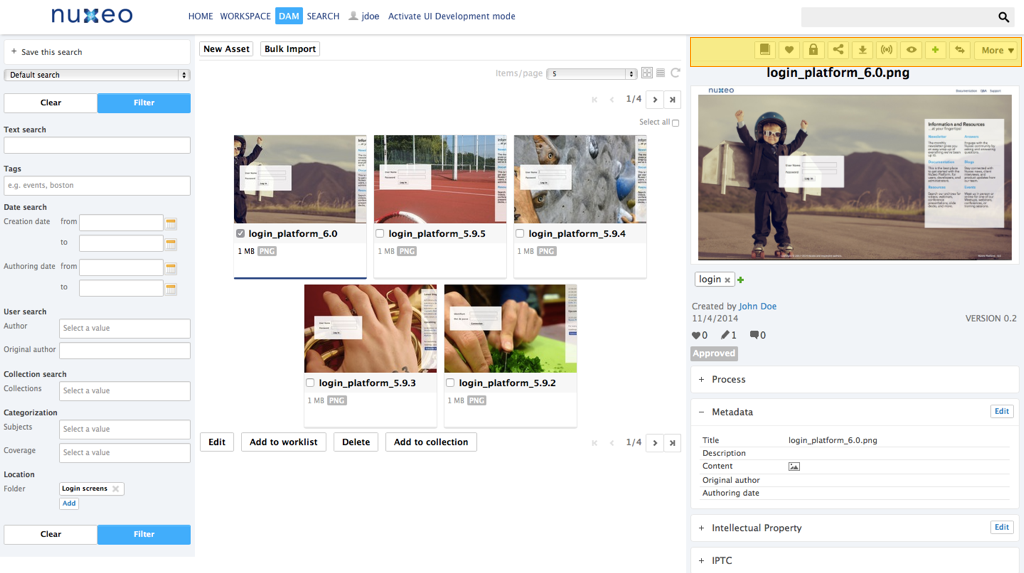

DAM Asset view actions

Technical name: DAM_ASSET_VIEW_ACTIONS

Available since Nuxeo Platform 5.7.1.

Unless you specify an icon, the following icon will be used:

DAM Search results actions

Technical name: DAM_SEARCH_RESULTS_ACTIONS

Available since Nuxeo Platform 5.7.1.

DAM Current selection lists

Technical name: DAM_CURRENT_SELECTION_LIST

Available since Nuxeo Platform 5.7.1.

Adapting Templates to Display an Action

Since Nuxeo Platform 5.6, an action can define the way it will be rendered by using the type attribute. This make it easier to combine different kinds of rendering for a group of actions, and this is done by using widget types for action types, to leverage features from the Nuxeo Layout Framework.

The template action type makes it possible to define a custom action rendering. New action types can also be contributed to the framework.

A series of widget types displaying are available by default, see the pages Tab Designer Widget Types and Advanced Widget Types. These widget types include rendering configuration options that are implemented by default action widget types (CSS styling, display as buttons or links, for instance).

Here are two ways of rendering actions.

Rendering Actions via Widget Definitions

Here is a sample widget definition to render actions using category MY_CATEGORY:

<extension target="org.nuxeo.ecm.platform.forms.layout.WebLayoutManager"
  point="widgets">
  <widget name="userActions" type="documentActionsWithForms">
    <properties mode="view">
      <property name="category">MY_CATEGORY</property>
      <property name="actionsDisplay">links</property>
      <property name="overallDisplay">horizontal_block</property>
      <property name="styleClass">userActions</property>
    </properties>
  </widget>
</extension>

This widget can be displayed on a page directly using the following sample code:


<div xmlns:nxl="http://nuxeo.org/nxforms/layout">
  <nxl:widget name="userActions" mode="view" value="#{currentDocument}" />
</div>

Of course this widget definition can also be included within a layout definition, as it's done for Incremental Layouts configuration.

Rendering Actions via Dynamically Computed Widget

It can also be useful to generate the widget definition dynamically from the widget template, by passing the widget properties as tag attributes to the  nxl:widgetType tag:


<div xmlns:nxl="http://nuxeo.org/nxforms/layout">
  <nxl:widgetType name="documentActionsWithForms"
    widgetName="documentActionsUpperButtons"
    mode="view"
    label=""
    actionStyleClass="button"
    actionsDisplay="icons"
    overallDisplay="horizontal_block"
    widgetProperty_category="MY_CATEGORY"
    maxActionsNumber="5"
    value="#{currentDocument}" />
</div>

Notice the tag attribute widgetProperty_category used to define the actions category: as widget types also have a notion of category, adding widgetProperty_ prefix to the attribute makes it possible to explicitly state that this is a widget property.

See also chapter about Layout and Widget Display.
