Editor

Updated: December 16, 2024

Availability
This feature is available for target platforms Nuxeo Platform LTS 2016 and above.

Two editors are available: the Code Editor and the Visual Editor.

Code Editor

The code editor mode is an HTML editor designed to let you inspect every elements and directly modify your layout. You can delete, modify, update, copy/paste, drag and drop every elements that you want.

The HTML mode includes a few helpers such as auto-completion for document properties, tasks properties, functions and polymer behaviours. The annotation @doctype, @schema or @task defined for each property defines the auto-completion for that property.

Don't forget to save your modifications, by clicking on the Save button Save Action Designer at the top right hand corner of your application.

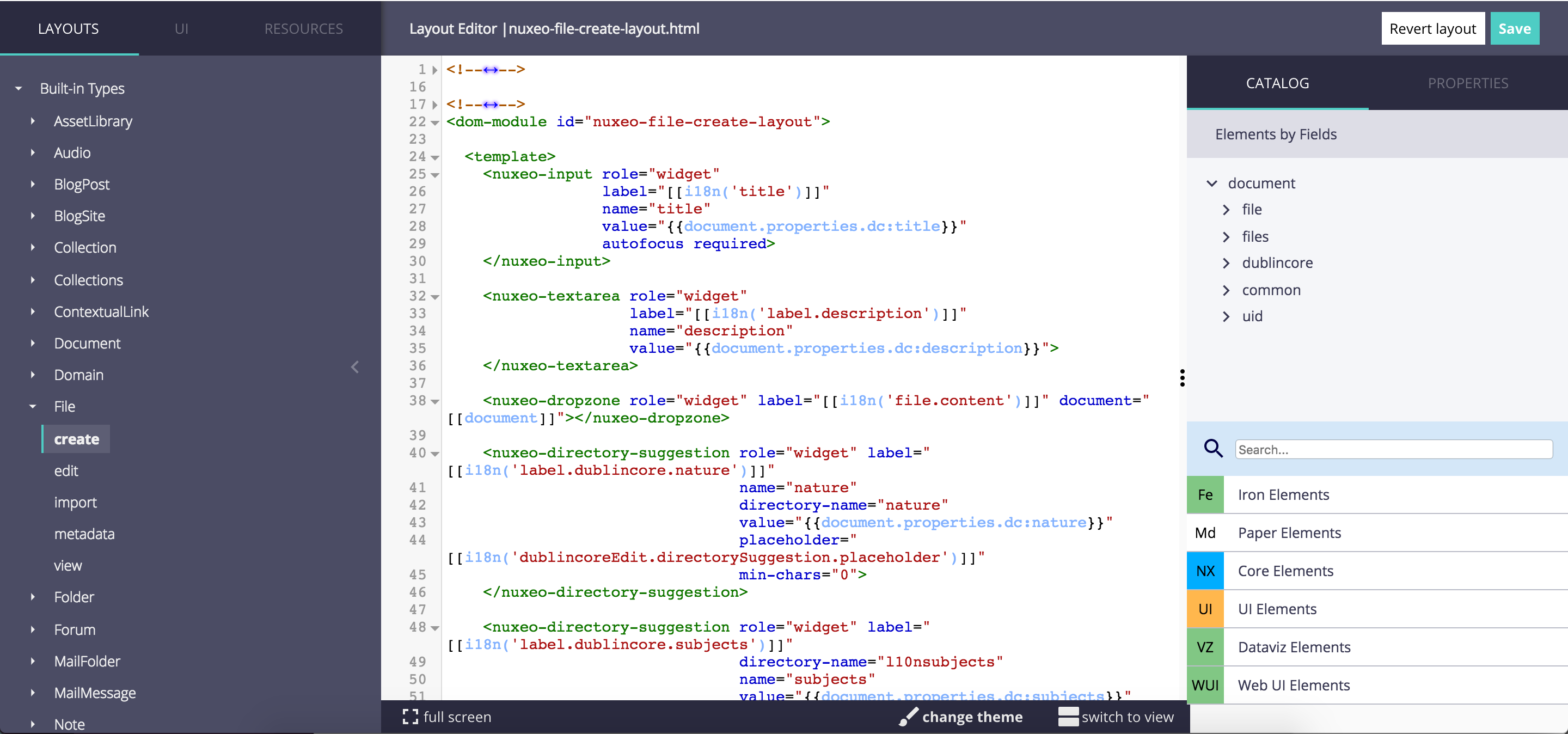

Code Editor Designer
Code Editor Designer

Visual Editor

On the Visual Editor you will be able to drag and drop elements from the catalog on the right and order them as you wish.

If you click on a particular element, you can edit its default properties, the label, etc. on the properties catalog on the right.

To delete an element, select it on the visual editor and click on the delete icon next to it.

Don't forget to save your modifications, by clicking on the Save button Save Action Designer at the top right-hand corner of your application.

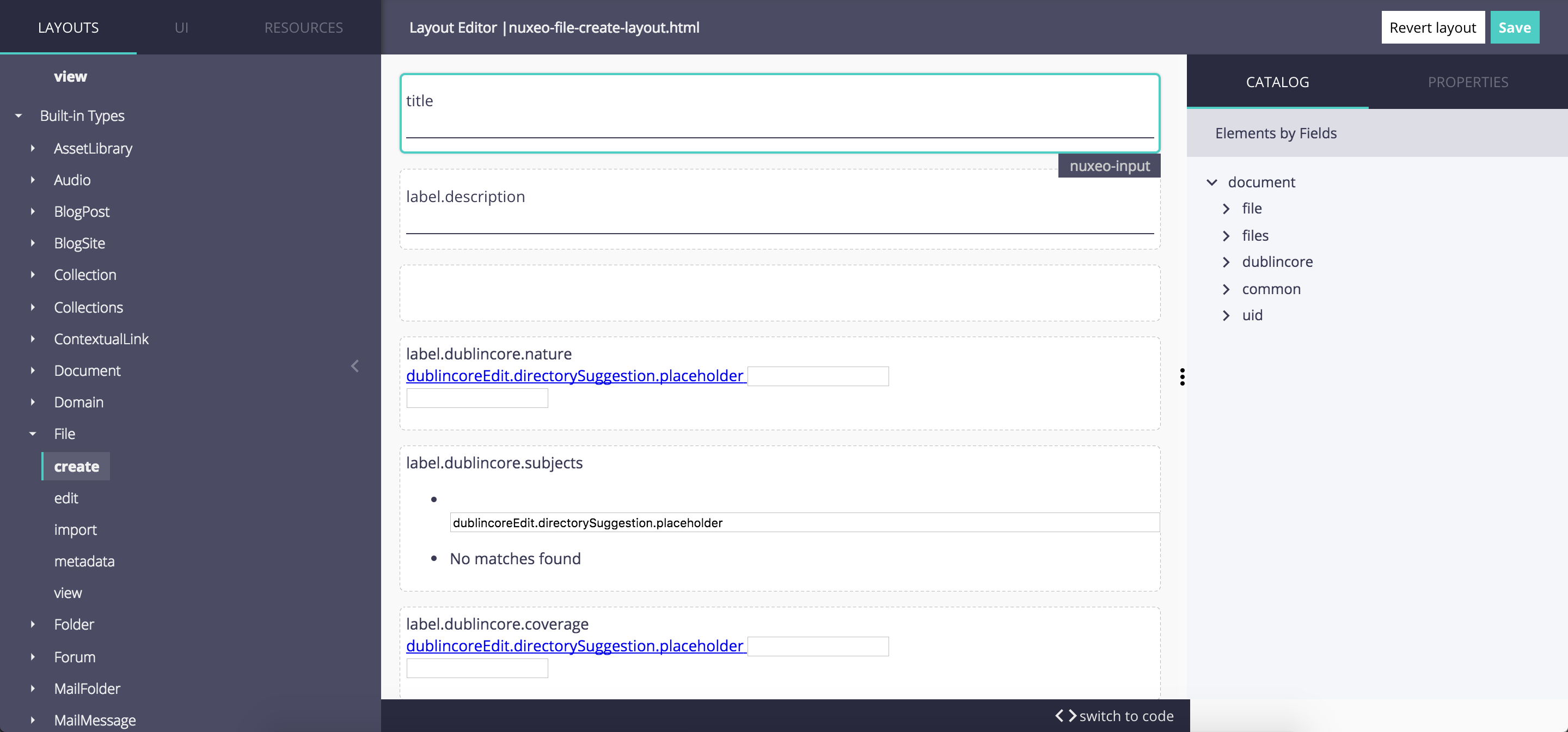

Visual Editor Designer
Visual Editor Designer

Revert to Default View

This action enables you to discard all the modifications that you have done on a layout and revert to the default view.

To do so, click on the discard changes button at the top right hand-corner of the screen. Discard Changes Designer A pop-up window appears. Click yes to confirm your choice.

Your layout is back as its initial state, before you click on the CONFIGURE button.
